Global buyers often treat molding pressure as a machine setting. That assumption can create expensive surprises. Pressure affects filling, packing, flash, sink marks, warpage, and cycle stability. It also changes with resin viscosity, melt temperature, gate design, venting, and injection speed. The same number on two machines may produce different results.
The market context is substantial. PlasticsEurope reported global plastics production of 413.8 million tonnes in 2023. Meanwhile, MarketsandMarkets estimates that the injection molding machine market could grow from approximately USD 10.6 billion in 2023 to USD 14.7 billion by 2028. These figures show why process discipline matters across international supply chains. A small pressure drift can become thousands of rejected housings, caps, or automotive parts.
John Bozzelli, founder of Injection Molding Solutions, has stated, “The goal is to make the process robust and repeatable.” That principle should guide every supplier audit. Buyers need more than a pressure value on a datasheet. They need pressure curves, cavity-balance evidence, material certificates, machine calibration records, and validated process windows. Ask for real production data.
Not every factory measures pressure at the cavity. That matters. Hydraulic pressure is not identical to polymer pressure. This detail is often overlooked, even by experienced teams. The following guide examines ten molding pressure factors that global buyers should verify before approving a tool, material, or production partner. Some recommendations may require adjustment. Real molds rarely behave perfectly.
Sources: PlasticsEurope, Plastics—The Fast Facts 2024; MarketsandMarkets, Injection Molding Machine Market report.

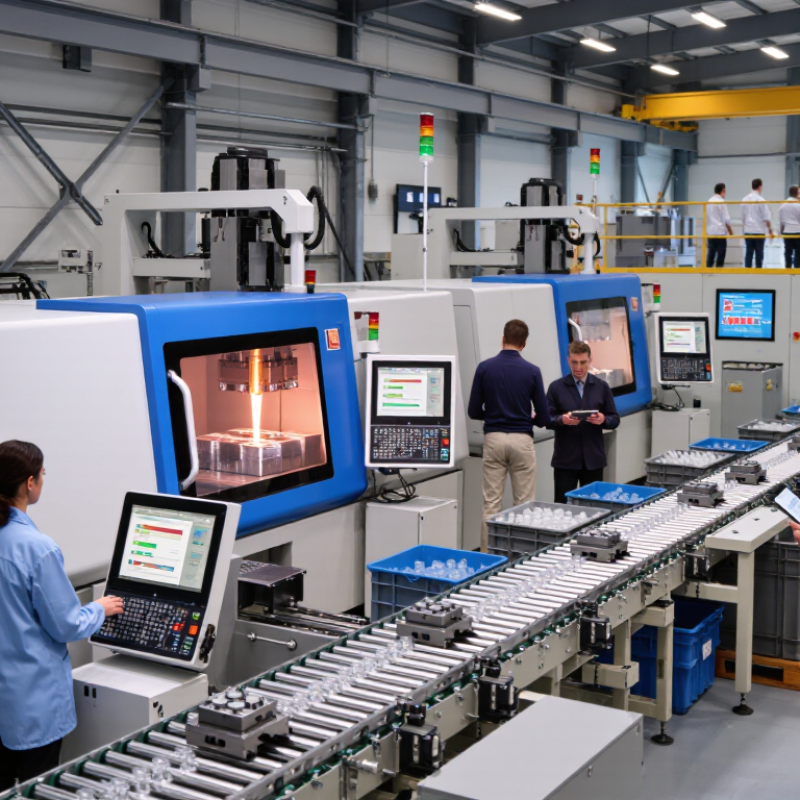

Top 10 Molding Pressure Factors Global Buyers Need to Know
What Molding Pressure Means and Why It Matters in Production
Molding pressure is the force that pushes molten plastic into every cavity detail. It also holds the material during cooling and shrinkage. Too little pressure can create short shots, weld lines, or weak edges. Too much pressure may cause flash, mold stress, and difficult part release. Pressure is not a magic number.
For reference, PlasticsEurope reported 400.3 million tonnes of global plastics production in 2022. That scale makes process control commercially important, not merely technical. ISO 294-1 also highlights controlled melt temperature, mold temperature, and injection speed during testing. These variables directly influence the pressure required for stable filling. Experienced processors usually review pressure curves instead of trusting one peak value. A stable curve often reveals more than a high setting.
Material viscosity, flow length, wall thickness, gate size, mold temperature, and venting all change the pressure demand. A thin-wall component may need fast filling and higher pressure. A large gate may reduce resistance but leave visible marks. Clamp force matters too. An approximate check uses projected area multiplied by cavity pressure, with a safety allowance. Yet this calculation can mislead when vents are blocked or the material batch changes.
I have seen teams raise pressure first. It solved the symptom, not the cause. A practical setup records injection pressure, holding pressure, screw position, filling time, and part weight. Small changes matter. For global buyers, these records support repeatability across machines, operators, and factories. The uncomfortable truth is simple: a lower pressure setting is not automatically safer, and a higher setting is not automatically better.
Material choice sets the pressure window before the machine starts. Melt viscosity is the main driver. High-viscosity grades resist flow through narrow gates and long runners. Low-viscosity materials fill more easily, but may flash if pressure rises too quickly. ISO 1133-1 measures melt flow rate under standard conditions, commonly 190°C and 2.16 kg for many thermoplastics. That number helps comparison, but it does not replace cavity trials.
Fiber-filled materials behave differently. Glass fibers increase stiffness, yet they can raise flow resistance and create orientation effects. Moisture-sensitive polymers may produce bubbles, splay, or unstable filling. Drying conditions matter. Thermal conductivity also changes cooling speed, which affects solidification near the gate. A frozen skin can demand much higher pressure during the final filling stage. Practical molding studies often place peak injection pressure between 40 and 140 MPa, depending on geometry, temperature, and material grade.
The scale is substantial. PlasticsEurope’s Plastics—The Fast Facts 2024 reported 413.8 million tonnes of global plastics production in 2023. That volume includes materials with very different processing behaviors. A neat pressure calculation is not enough. The imperfect part is often the material datasheet. It may reflect ideal laboratory conditions, not a humid factory or a worn screw. Engineers should verify viscosity, moisture, shrinkage, and pressure through short-shot tests and recorded machine data. Small changes in gate thickness can expose large differences.
Nearly there, but not always safe.
Pressure stability begins with the injection speed profile. A sudden speed increase can create a sharp pressure spike near the gate. Smaller, controlled steps often produce more consistent filling.
Set the transfer point carefully. Switching from injection to holding too early may leave short shots. Switching too late can cause flash and excessive internal stress. Monitor screw position, cavity pressure, and the cushion after every adjustment. Small errors matter. Do not guess.
Holding pressure and holding time directly affect part weight and dimensions. Use enough pressure to compensate for material shrinkage, but avoid packing the cavity unnecessarily. Melt temperature, mold temperature, and back pressure also change flow resistance. A colder mold may need higher pressure, while excessive back pressure can increase shear and melt temperature.
Check the pressure sensor regularly. Calibration drift can make a stable process appear unstable. Confirm readings against actual part weight and visual defects. I have seen operators adjust pressure when the real problem was an inconsistent cushion. That mistake is easy to repeat. A setting that worked yesterday may fail after material moisture, room temperature, or recycled content changes. Record each change, including the reason and measured result. This creates a reliable process instead of a collection of guesses.
Molding pressure rarely distributes evenly across a cavity. Gate location sets the first pressure path. A gate near a thick section may reduce filling resistance, but it can create localized packing stress. Long, thin flow paths lose pressure quickly. Balanced runners help, although perfect balance is uncommon in real production.
Wall thickness changes pressure behavior. Sudden transitions can cause hesitation, weld lines, or uneven shrinkage. Vent depth and position also matter. Poor venting traps air near the final fill area, forcing operators to increase pressure unnecessarily. That adjustment may hide the real design problem. Sometimes, it makes flash or parting-line damage worse.
Process conditions can shift pressure within seconds. Higher injection speed raises shear heating and may lower apparent viscosity. Excessive speed, however, can create jetting or burn marks. Holding pressure must support shrinkage without overpacking the gate area. Melt temperature, cooling time, and clamp force should be checked together, not separately. In production trials, cavity pressure sensors often reveal differences that machine pressure cannot show. A stable machine reading can still hide an unstable cavity. This is where experienced engineers should question the data, repeat the test, and inspect parts after cooling.
Molding pressure is not a single machine number. It includes injection pressure, cavity pressure, holding pressure, and clamp force. Global buyers should request pressure curves, not only a target setting. A hydraulic reading can look stable while cavity pressure changes sharply. Install calibrated sensors near critical cavities when possible. Record peak pressure, transfer position, cushion, cycle time, and part weight during production.
Watch the part closely. Short shots may indicate insufficient filling pressure, early transfer, restricted gates, or poor venting. Flash can come from excessive pressure, weak clamping, or a damaged mold surface. Sink marks often require a longer or higher holding phase, but excessive holding pressure may create stress or difficult ejection. Adjust one variable at a time, using small steps. Then inspect several consecutive cycles. One good sample proves little.
Troubleshooting should begin with simple checks. Confirm material drying, melt temperature, nozzle alignment, and gate cleanliness. Check the non-return valve if cushion varies or shot size becomes unstable. Verify sensor calibration before blaming the process. Keep dated records with machine settings, pressure curves, ambient conditions, and defect photographs. This evidence helps buyers compare suppliers fairly. A common mistake is treating machine pressure as cavity pressure. Another is changing pressure, speed, and temperature together. That saves minutes, sometimes. It also hides the real cause. Perfect control is not always realistic, but uncontrolled adjustment is avoidable.
How to monitor, adjust, and troubleshoot molding pressure problems
The chart shows typical starting alarm bands for key injection-molding variables, expressed as percentage deviation from a validated process setpoint. Smaller limits are used for transfer position, mold temperature, and cushion because these variables can strongly affect pressure consistency. Actual limits should be confirmed through scientific molding trials, material data, machine capability, and product quality results.
